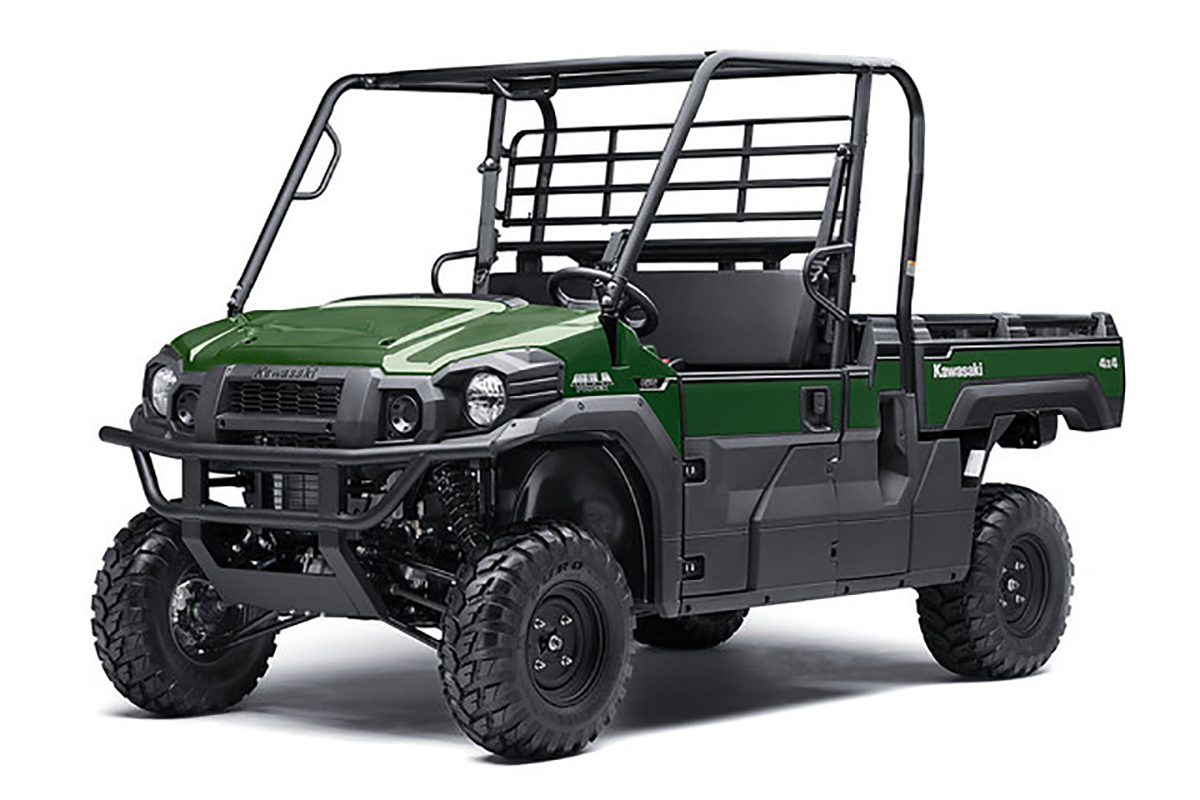

2020 Mule Pro-FX
Kawasaki Mule Pro-FX for Sale at Moorooka Kawasaki in Moorooka, QLD | Specifications and Review Information
Mule Strong for Leisure and Work
The MULE PRO-FX maintains the durability for which the MULE workhorses are famous, and adds increased engine performance, improved handling, and increased functionality to greatly boost the outdoor entertainment potential. The markedly improved functional comfort means longer hours can be spent doing hard work or enjoying leisure activities. The Mule PRO-FX's combination of performance, durability, comfort and convenience make it the industry's most dependable outdoor partner. The MULE PRO-FX seats up to 3 adults has a ROPS approved Cab Frame for added peace of mind and with the class-leading rear tray carry a maximum load of 453 kg. A full range of Kawasaki Genuine Accessories are available.
| Model | MULE PRO-FX (KAF820F) |
| Engine Type | Liquid-cooled, 3-cylinder, petrol |
| Displacement | 812 cm³ |
| Bore X Stroke | 72.0 X 65.5 mm |
| Compression Ratio | 9.5:1 |
| Valve System | DOHC 12 valves |
| Fuel System | Fuel injection: ø34 mm x 1 |
| Ignition | Battery & coil |
| Starting | Electric |
| Transmission | Dual range (high/low) cvt with reverse |
| Final Drive | 2wd / 4wd, shaft, dual-mode differential |
| Frame | Ladder type, tubular steel |
| Steering | Electric Power Steering (EPS) |
| Suspension - front | Double wishbone |
| Suspension - rear | Double wishbone |
| Ground Clearance | 260 mm |
| Wheel Travel - front | 222 mm |
| Wheel Travel - rear (right, left) | 217 mm / 220 mm |
| Brakes - front | Dual 212 mm discs with two-piston calipers |
| Brakes - rear | Dual 212 mm discs with single-piston caliper |
| Wheels type - front | Steel 12 inch |
| Wheel type - rear | Steel 12 inch |
| Tyre front | 26 x 9.00R12 4pr |
| Tyre rear | 26 x 11.00R12 4pr |
| L X W X H | 3,385 x 1,625 x 1,965 mm |
| Wheelbase | 2,345 mm |
| Minimum Turning radius | 4.8 m |
| Seat Height | 885 mm |
| Fuel Capacity | 30 litres |
| Curb Mass | 824 kg (includes full fuel tank, all fluids at optimum levels) |
| Dry Weight | 791 kg |
| Cargo bed load capacity | 453 kg |
| Cargo Bed L x W x H | 1,375 x 1,355 x 280 mm |
| Towing Capacity | 907 kg |
| Seating Capacity | 3 persons |
| Maximum Permissible Load | 740 kg |
| Maximum Power | 35 kw {48 ps} / 5,500 rpm |
| Maximum Torque | 65 n.M {6.6 Kgf.M} / 3,500 rpm |
| Colour | Timberline Green |
| Warranty | 36 months - terms and conditions apply - discuss with a kawasaki dealer |
