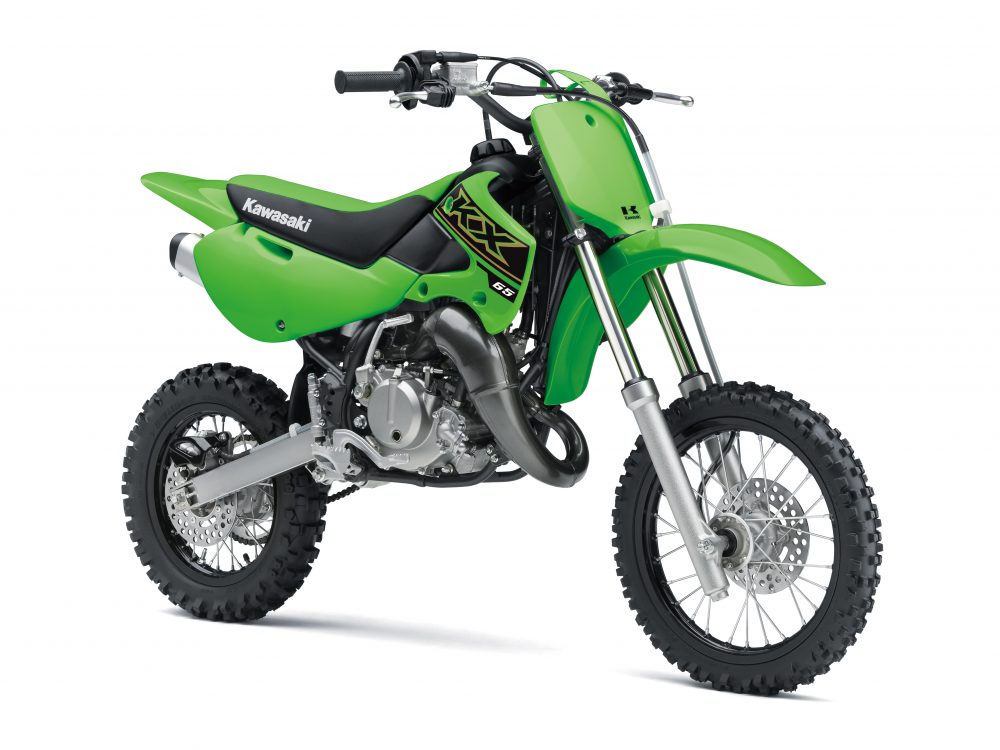

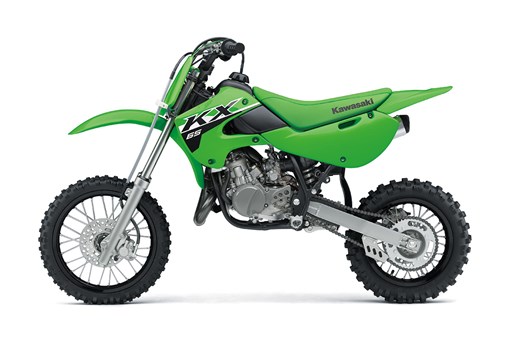

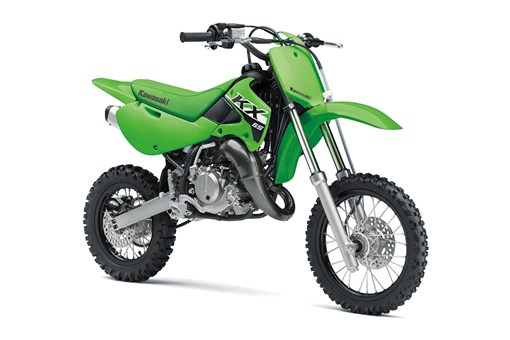

Kawasaki 2021 KX65 for Sale at Moorooka Kawasaki in Moorooka, QLD | Specifications and Review Information
The Bike That Builds Champions
For more than 30 years, Kawasaki's smallest KX motocross bike has played a key role in the sport of motocross, providing a race-winning platform on which countless national and world champions have begun the journey to superstardom.

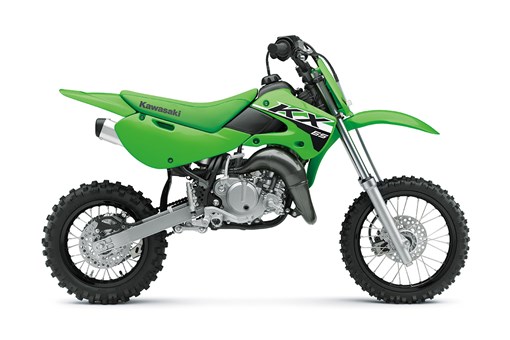

Today, Kawasaki's KX65 maintains the same successful attributes, including a powerful and reliable two-stroke engine, lightweight chassis, disc brakes and long travel suspension. Its reputation as the quintessential learning tool for young racers taking their first steps into the world of competitive riding is well deserved.

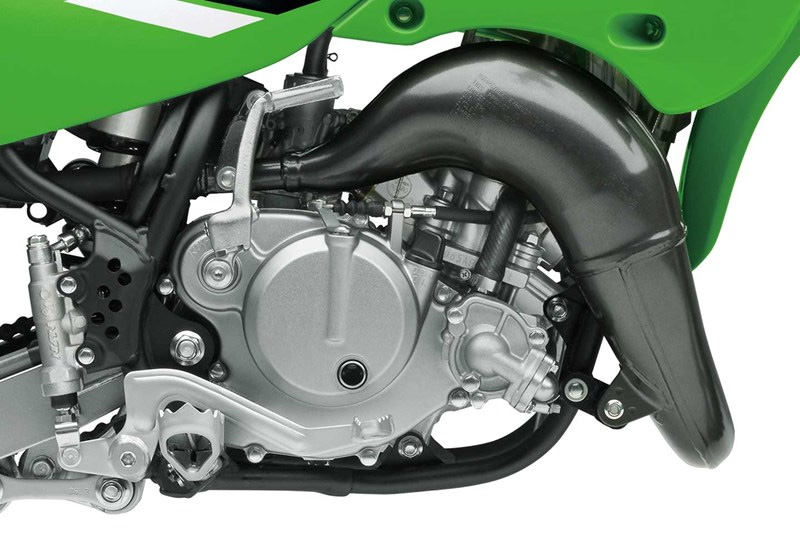

64cc Two-Stroke Engine
Built for competion and to put them out the front of the pack. Easy, competitive operation to assist in building motocross riding skills.
Digital ignition offers ideal timing for optimal throttle response throughout the rev range. Ignition rotor features rare-earth magnets, making it smaller, lighter and more durable. Its low inertial moment improves low-rpm response. High capacity ignition coil delivers a higher secondary voltage for a hotter spark, and the punchier response improves acceleration. Connecting rod big-end bearing features a cage for added durability. Primary gear is secured using a lock-nut to help reduce mechanical noise. The oil seal of the left crankcase has a stopper for increased engine reliability. Metafoam gaskets are used for the generator cover, water pump cover and water pump elbow for improved sealing.
Silver clutch and ignition covers resist the signs of boot rub to help keep the KX looking fresh for longer
Front and Rear Disc Brakes
A high-performance engine needs high-performance stopping power and the KX65’s mighty front and rear disc brakes deliver powerful braking performance and high resistance to fade. A re-designed front brake lever now also offers even better feel.
Light and powerful. Ergonomic front brake lever shape offers easy operation. The front and rear brakes resist fading.
Large 180mm front and rear disc brakes with single piston calipers for superb braking performance. The rear brake has O-rings sealing the pivot for smooth operation.
Bottom-Link Uni-Trak Rear Suspension
The KX65’s UNI-TRAK® rear suspension system features a rising-rate action that increases the damping strength as the suspension compresses. The nitrogen-charged shock offers 4-way rebound damping adjustability, a stiff spring (in Lime Green), and damping settings to accomodate aggressive riding.
The rocker arm is made of cast aluminium to save on weight. The bottom link design helps lower the centre of gravity, which makes the bike feel lighter and easier to handle. The external reservoir cools the shock fluid, increasing fade resistance to keep the damping consistent on the nitrogen-charged shock.
Lightweight Aluminium Rims
Aluminum rims reduce unsprung weight and their strength adds durability. The 2016 KX65 receives black aluminium rims just like the larger KX models. The look of the 2016 KX65 is taken from the big brother KX450F and KX250F
The aluminium reduces unsprung weight for improved suspension action.
33mm Conventional Fork
Front fork springs and damping settings reduce bottoming for more aggressive riding. The large 33 mm inner tubes assure rigidity for great handling on rough courses. Four-position rebound-damping adjustment accommodates different riding styles and terrain. Suspension built to reduces fatigue, improve line holding and create confidence.
The KX65 has candy lime green type II forks caps just like the KX250F and KX450F.
24mm Mikuni Carburetor
Feeds a 4-petal reed valve for excellent throttle response. Helps the engine to produce good power and torque at all rpm.
Fuel Tank Check Valve
The fuel tank cap vent hose has a check valve to reduce the possibility of fuel seepage.
Digital Capacitor Discharge Ignition (CDI)
Digital ECU precisely controls timing, no matter how fast the rpm changes. Special ignition coil produces hot spark to enhance acceleration.
Optional parts available include a 0.37mm carbon fibre reed petals, various carburettor jets, front and rear spring and sprockets. All to ensure the KX65 is set-up right for the rider.
The KX’s smooth-shifting six-speed transmission offers a positive shifting action along with rugged durability thanks to hard chromed shift forks. The clutch is operated manually by hand for maximum control and performance.
The ends of the shft forks are hard chrome finished for durability. A bearing that is sealed on one side is used on the shift drum to help raise the tranmission's oil level for increased lubrication and added durability. A short shift lever to assist in quick gear changes.
The clutch actuation arm rides in needle bearings for smooth action. The clutch basket and hub ride on involute splines and are fastened with a circlip instead of a bolt to ease servicing. The steel clutch plates have a special surface treatment to improve the feel. Positive action and rugged durability. Manual clutch mechanism mirrors larger KX models. Clutch cover gasket made of metal-carbon composite material.
Electrofusion coating on the aluminum cylinder walls improves heat transfer for consistent power output. It allows closer piston-to-cylinder clearances for more power and provides excellent wear and seizure resistance.
Silencer is removable, and packing is replaceable. Oval shape mimics the styling of larger-displacement KX model.
High Tensile Steel Semi-Double Cradle Frame
The high-tensile steel frame is constructed from the same strong, lightweight, high-tech materials as the bigger KX Motocross bikes to offer exceptional torsional rigidity for great handling. Reinforced downtube adds strength and durability. The engine and chassis bolts feature a rust-resistant coating.
Large cast steel footpegs are designed to resist bending and offer great grip.
- Updated graphics and styling based on the 2018 KX250F and KX450F
- Lime Green rear spring
- Candy Lime Green Type II alumite coating on the fork caps
- 64cc two-stroke engine with digital ignition offers ideal timing for better throttle response throughout the rev range
- An electrofusion-coated cylinder with advanced exhaust and transfer ports for awesome power and performance at higher rpm
- Six-speed transmission offers positive action and rugged durability; hard chrome-finished shift fork ends resist wear
- High-tensile steel frame offers exceptional torsional rigidity for excellent handling with a reinforced down tube for increased strength and durability
- Uni-Trak® rear suspension offers progressively increasing spring and damping strength as the suspension compresses for a more controlled ride
- Front and rear disc brakes are light, powerful and resist fading
|Engine Type||Liquid-cooled, 2-stroke Single|
|Bore X Stroke||44.5 x 41.6 mm|
|Valve system||4 petal piston reed valve|
|Fuel system||Carburettor: Mikuni VM24SS|
|Clutch||Wet multi-disc, manual|
|Frame||High-tensile steel semi-double cradle with detachable left-side rear section|
|Wheel travel - front||210 mm|
|Wheel travel - rear||240 mm|
|Tyre Size- front||60/100-14 (30M)|
|Tyre Size- rear||80/100-12 (41M)|
|Suspension - front||33 mm telescopic fork with 4-way rebound damping|
|Suspension - rear||Bottom-Link Uni-Trak with gas-charged shock, adjustable preload and 4-way rebound damping|
|Brakes - front||Single 180 mm disc with single-piston caliper|
|Brakes - rear||Single 180 mm disc with single-piston caliper|
|L x W x H||1,590 x 760 x 955 mm|
|Ground Clearance||305 mm|
|Seat height||760 mm|
|Fuel capacity||3.8 litres|
|Curb Mass||60.0 kg (includes full fuel tank, all fluids at optimum levels)|
