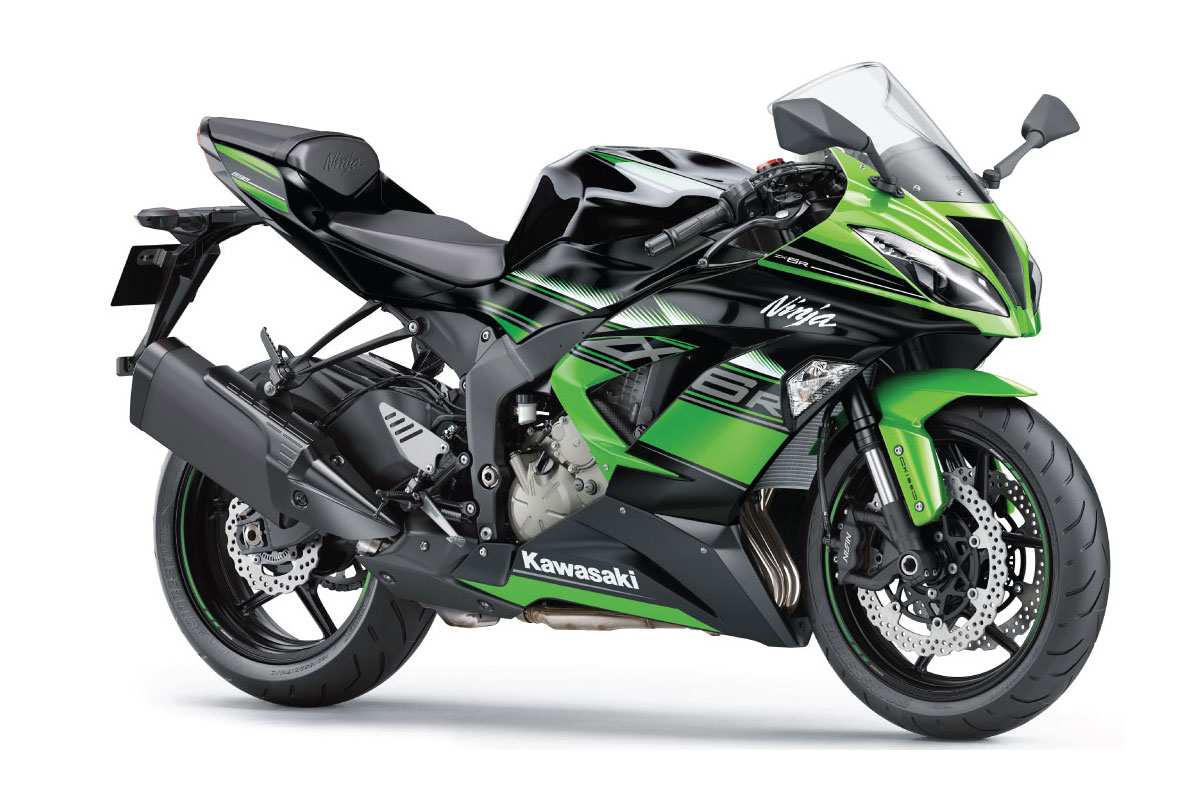

2017 NINJA ZX-6R (636) ABS
Ninja ZX-6R (636) KRT Edition
The Ultimate sportsbike for the everyday riding.
Capitalising on the strengths of the highly competitive engine and chassis package of the 599 cm3 Ninja ZX-6R (ZX600R), the 2017 Ninja ZX-6R ABS 636 KRT Edition model, expands its area of expertise, offering performance and riding excitement in a wider range of situations. With displacement increased to 636 cm3, the new bike offers more performance at all rpm as well as great usability in everyday street-riding situations. Additionally, with chassis settings focused on winding roads, the new bike is able to deliver riding exhilaration in situations ranging from the track to the hills, and the highway to the city.
636cm 3 liquid cooled, 4-stroke in-line four
Increased displacement via a longer stroke offers increased performance at all rpm. Stronger low-mid range torque offers greater usability in everyday riding situations.
Naturally Aggressive Ergonomics
Riding position ideal for sport riding offers an intuitive fit that puts riders instantly at ease. Tank, seat and rear frame offer good contact with the bike for enhanced rider feedback.
Close-ratio 6-speed cassette transmission facilitates gear ratio changes to suit circuit conditions.
Power Mode Selection
Riders can choose from Full Power or Low Power mode.
Short Style Silencer
Larger volume silencer helps reduce noise levels. Its triangular design achieves required volume, a high lean angle and a compact image.
Exhaust Pre Chamber
Pre-chamber helps minimise silencer volume, contributing to mass centralisation.
Pressed Aluminium Frame
Race-developed perimeter frame is the key to the Ninja ZX-6R’s superb balance of flickable handling, mid-corner stability and an ability to change lines on command, coupled with excellent chassis feedback.
Easy to read Instrumentation
Easy-to-read instrument panel features a large-dial tachometer and a multi-function screen that includes a large numerical gear position indicator.
Highly rigid, radial-mount monobloc Nissin calipers deliver a firmer feel at the lever for enhanced control. Larger 310 mm petal disc brakes and a radial-pump front brake master cylinder complete the front brake package, ensuring powerful braking with excellent feel. 220 mm petal disc brake and light caliper slow the rear.
Kawasaki Traction Control
The 3-mode KTRC system covers a wide variety of riding conditions. Modes 1 and 2 offer enhanced sport riding performance. Mode 3 offers increased stability when traversing slippery surfaces.
Anti-lock Brake System
Multi-sensing system, ideally suited to supersport models, uses high-precision control to minimise intrusion during hard sport riding.
Combining the concepts of Showa SFF and BPF, this next-generation fork offers both racetrack performance and everyday usability. Preload and damping (rebound & compression) are separated, facilitating setup.
Winding Roads Suspension
Spring rates and damping settings chosen to maximise performance on winding roads enable riders to enjoy the Ninja ZX-6R’s sporty performance in a wider range of situations.
|Model||NINJA ZX-6R (ZX600RHF)|
|Engine Type||Liquid-cooled, 4-stroke In-Line Four|
|Bore X Stroke||67.0 x 42.5 mm|
|Valve system||DOHC 16 valve|
|Fuel system||Fuel injection: ø38 mm x 4 (Keihin) with oval sub throttles and dual injection|
|Clutch||Wet Multi-disc, manual|
|Wheel travel - front||120 mm|
|Wheel travel - rear||134 mm|
|Tyre Size- front||120/70ZR17 (58W)|
|Tyre Size- rear||180/55ZR17M/C (73W)|
|Suspension - front||ø41 mm inverted Front Fork with stepless compression adjustment, stepless rebound damping adjustment and spring preload adjustability|
|Suspension - rear||Bottom-Link Uni-Trak with gas-charged shock with a top-out spring and pillow ball upper mount, stepless dual range compression damping adjustment and 25-way rebound damping adjustment with fully adjustable spring preload|
|Brakes - front||Dual semi-floating 300 mm (x t6 mm) petal discs with dual radial-mounted opposed 4-piston (aluminium) 4-pad, Nissin calipers|
|Brakes - rear||Single ø220 mm (xt5 mm) petal disc with single-bore pin-slide, aluminium piston, Tokico caliper|
|L x W x H||2,090 x 705 x 1,115 mm|
|Ground Clearance||120 mm|
|Seat height||815 mm|
|Curb Mass||17 litres|
|Max Power||94.1 kW (128 PS) / 14,000 rpm|
|Max Power with Ram Air||98.5 kW (134 PS) / 14,000 rpm|
|Max Torque||66.7 N.m 6.8 kgf.m / 11,800 rpm|
|Colour||Lime Green and Ebony|
|Warranty||24 Months Unlimited Kilometres|
