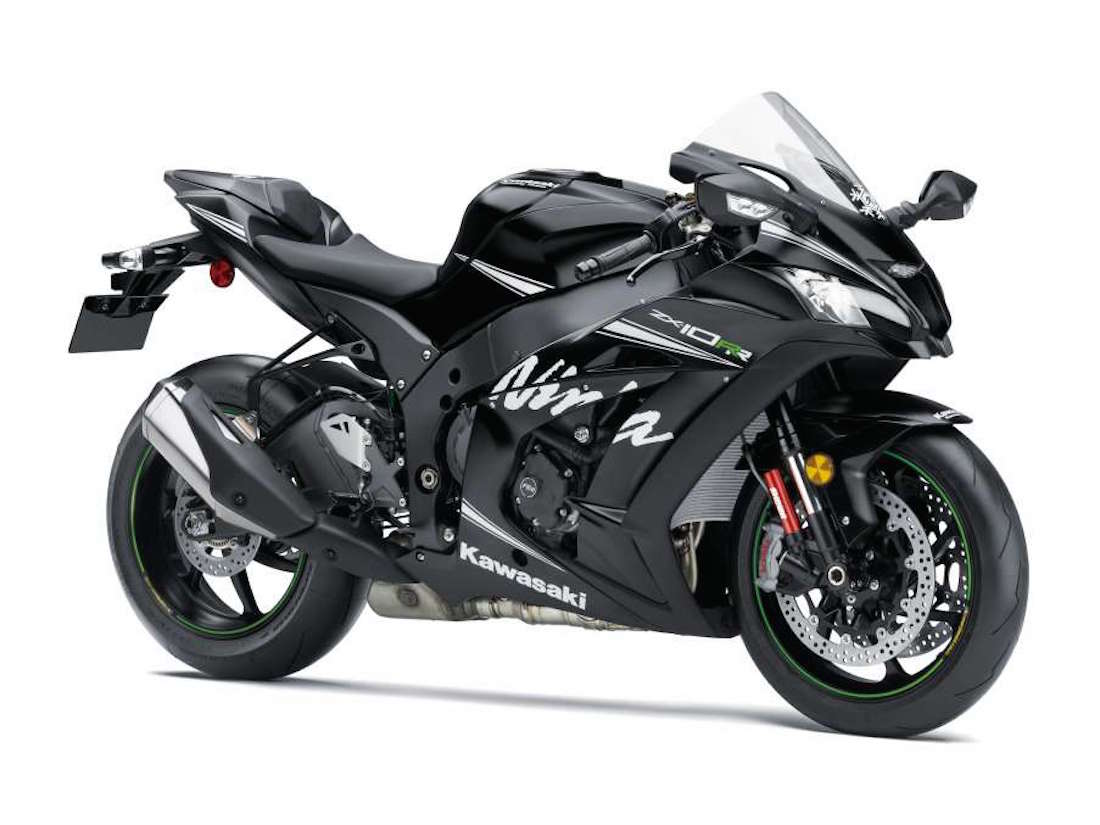

THE CLOSEST THING TO A WORLD SUPERBIKE CHAMPION MACHINE
The 2017 Ninja ZX-10RR has clearly demonstrated its circuit potential through winning results in the Superbike World Championship (SBK). Kawasaki dominated both the 2015 championship and 2016 season with Jonathan Rea's consecutive World Superbike Championships and again winning the 2016 WSB Manufacturers Championship for Kawasaki. Feedback from the Kawasaki Racing Team and constant development research, the 2017 Ninja ZX-10RR (ABS KRT Winter Test Edition) is the closest available Kawasaki model to a highly advanced factory Kawasaki superbike.
Worldwide, only 1,000 units of the Ninja ZX-10RR are being produced for 2017. Designed to win races on the national level in standard trim, the Ninja ZX-10RR excludes any equipment unnecessary to quick lap times. The machine is also suited for street use.

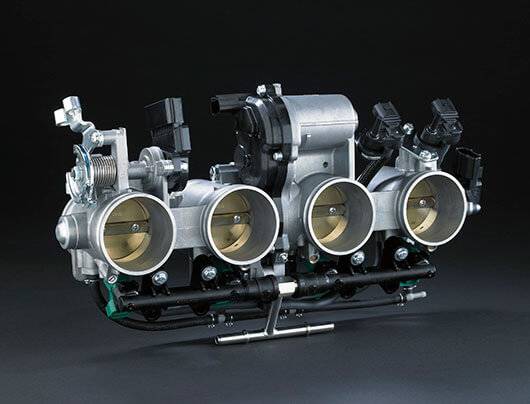

Electronic Throttle Valves
Kawasaki's fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions.
Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Cruise Control.
S-KTRC (Sport-Kawasaki TRaction Control)
S-KTRC (Sport-Kawasaki TRaction Control), Kawasaki's original predictive traction control, uses the same base technology as the Kawasaki works machines that competed in MotoGP, the pinnacle of motorcycle racing. This technology continually controls the rear wheel slip that occurs when power is applied, ensuring optimal acceleration. In general, maximum forward drive requires a certain amount of slip (usually between 20-30% slip ratio, i.e. the rear wheel is turning 20-30% faster than the front). To ensure the most effective transfer of power to the tarmac, S-KTRC monitors the slip ratio in real time, and governs engine power delivery to optimise rear wheel traction.
S-KTRC monitors a number of parameters, including front and rear wheel speed, engine rpm and throttle position. Conditions are confirmed every 5 milliseconds, at which time the system looks at each of the parameters as well has how much they are changing (i.e. their rate of change). This unique Kawasaki method makes it possible to interpolate and predict how the bike will behave in the next instant.
Unlike 1-mode KTRC, which cuts power as soon as rear slip is detected to allow rear traction to be regained, S-KTRC uses minimal power drops to ensure the slip ratio for optimal traction is maintained. Because its goal is to maximise acceleration, as long as sufficient forward motion is observed, this sport riding system will allow power wheelies as the bike comes out of corners.
Models equipped with multiple Power Modes offer riders an easily selectable choice of engine power delivery to suit riding conditions or preference. In addition to Full Power mode, one (Low) or two (Medium, Low) alternate mode(s) in which maximum power is limited and throttle response is milder. Riders may opt to use Low Power mode for rainy conditions or city riding, and Full Power when sport riding. Power Modes may be set independently of traction control settings, enabling a number of possible combinations.
(Kawasaki Intelligent anti-lock Brake System)
Kawasaki developed KIBS (Kawasaki Intelligent anti-lock Brake System) to take into account the particular handling characteristics of supersport motorcycles, ensuring highly efficient braking with minimal intrusion during hard sport riding. It is the first mass-production brake system to link the ABS ECU (Electronic Control Unit) and engine ECU.
In addition front and rear wheel speed, KIBS monitors front brake caliper hydraulic pressure, throttle position, engine speed, clutch actuation and gear position. This diverse information is analysed to determine the ideal front brake hydraulic pressure. Through precise control, the large drops in hydraulic pressure seen on standard ABS systems can be avoided. Additionally, the tendency on supersport models for the rear wheel to lift under heavy braking can be suppressed and rear brake controllability can be maintained when downshifting.
And because the drops in hydraulic pressure are much finer than with a standard ABS system, kickback to the brake lever during operation is minimal, resulting in a very natural feeling.
Horizontal Back-link Rear Suspension
Compared to Kawasaki's traditional Uni-Trak rear suspension, which mounts the shock unit vertically, with Horizontal Back-link rear suspension, the shock unit is almost horizontal. Kawasakiâ€™s original suspension arrangement locates the shock unit very close to the bikeâ€™s centre of gravity, greatly contributing to mass centralisation. And because there is no linkage or shock unit protruding beneath the swingarm, this frees up space for a larger exhaust pre-chamber (an exhaust expansion chamber situated just upstream of the silencer). With a larger pre-chamber, silencer volume can be reduced, and heavy exhaust components can be concentrated closer to the centre of the bike, further contributing to mass centralisation. The result is greatly improved handling.
Another benefit is that the shock unit is placed far away from exhaust heat. Because it is more difficult for heat from the exhaust system to adversely affect suspension oil and gas pressure, suspension performance is more stable. Horizontal Back-link rear suspension offers numerous secondary benefits like this.
Economical Riding Indicator
Using high-precision electronic control for engine management, Kawasaki models can achieve a high level of fuel efficiency. However, fuel consumption is greatly affected by throttle use, gear selection, and other elements under the rider's control.
The Economical Riding Indicator is a function that indicates when current riding conditions are consuming a low amount of fuel. The system continuously monitors fuel consumption, regardless of vehicle speed, engine speed, throttle position and other riding conditions. When fuel consumption is low for a given speed (i.e. fuel efficiency is high), an "ECO" mark appears on the instrument panel's LCD screen. By riding so that the "ECO" mark remains on, fuel consumption can be reduced.
While effective vehicle speed and engine speed may vary by model, paying attention to conditions that cause the "ECO" mark to appear can help riders improve their fuel efficiency - a handy way to increase cruising range. Further, keeping fuel consumption low also helps minimise negative impact on the environment.
KLCM (Kawasaki Launch Control Mode)
Designed to assist riders by optimising acceleration from a stop, KLCM electronically manages engine output to prevent wheelspin when moving off. Riders can choose from three modes, each offering a progressively greater level of intrusion. Each mode allows the rider to leave from a stop with the throttle held wide open.
Kawasaki Engine Brake Control
The Kawasaki Engine Brake Control system allows riders to select the amount of engine braking they prefer. When the system is activated, the engine braking effect is reduced, providing less interference when riding on the circuit.
IMU-Enhanced Chassis Orientation Awareness
The strength of Kawasaki's cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing. Kawasaki's proprietary dynamic modelling program makes skilful use of the magic formula tyre model as it examines changes in multiple parameters, enabling it to take into account changing road and tyre conditions.
The addition of an IMU (Inertial Measurement Unit) enables inertia along 6 DOF (degrees of freedom) to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch rate are measured. The yaw rate is calculated by the ECU. This additional feedback contributes to an even clearer real-time picture of chassis orientation, enabling even more precise management for control at the limit.
With the addition of the IMU and the latest evolution of Kawasaki's advanced modelling software, Kawasaki's electronic engine and chassis management technology takes the step to the next level - changing from setting-type and reaction-type systems to feedback-type systems - to deliver even greater levels of riding excitement.
(Kawasaki Cornering Management Function)
KCMF (Kawasaki Cornering Management Function):
Using the latest evolution of Kawasaki's advanced modelling software and feedback from a compact IMU (Inertial Measurement Unit) that gives an even clearer real-time picture of chassis orientation, KCMF monitors engine and chassis parameters throughout the corner - from entry, through the apex, to corner exit - modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner. The systems that KCMF oversees vary by model, but may include:
- S-KTRC/KTRC (including traction, wheelie and sliding control)
- KLCM (including traction and wheelie control)
- KIBS (including pitching and corner braking control)
- Kawasaki Engine Brake Control
KQS (Kawasaki Quick Shifter)
Designed to help riders maximise their acceleration on the circuit by enabling clutchless upshifts with the throttle fully open, KQS detects that the shift lever has been actuated and sends a signal to the ECU to cut ignition so that the next gear can be engaged without having to use the clutch. For some models, when a race kit ECU is used, clutchless downshifts are also possible.
Simply the Fastest on the Track
Refined In-Line Four delivers 147.1 kW (200 PS)
Max power maintained while meeting Euro 4 regulations
Strong acceleration on corner exits
Electronic Throttle Valves: Precise control of intake airflow
Titanium exhaust system
Specially Designed Marchesini Forged Wheels
High Performance Tyres
Special "RR" Features
Refined Track-focused 998 cm3
Offering the same blend of high power and manageability, smooth power deliver facilitates getting back on the gas, while updates deliver a stronger low-mid range for quicker acceleration out of corners on the track. Significant feedback from Kawasaki's factory superbike ensures the engine's immense power was maintained while meeting Euro 4 regulations.
Bosch IMU (Inertial Measurement Unit)
The Ninja ZX-10RR compact IMU operates in 6 DOF (degrees of freedom): 5 measured + 1 calculated. Combined with Kawasaki's proprietary dynamic modelling program, input from the IMU enables even more precise chassis orientation awareness, the key to bringing Kawasaki's electronics to the next level.
The use of Bosch's compact IMU allows an additional layer of precision to be added to the already high-level S-KTRC, KLCM and KIBS. A new cornering managment function uses KIBS and S-KTRIC to assist riders in tracing their intended line through the corner (ABS models only).
The centrepiece of the Ninja ZX-10RR's instrument panel is the highly visibly LED-backlit bar-graph tachometer - a mass-production first when introduced on the 2011 model. Additional functions on the multi-function meter include: gear position indicator,odometer, dual trip meters, average fuel consumption, instant fuel consumption, Power Mode (3 modes), S-KTRC (5 modes + OFF), low fuel indicator, Economical Riding Indicator, water/intake air temperature and a host of indicator lamps.
Aluminium twin-spar frame
Geometry care of a steering head moved closer to the rider, and a longer swingarm put more weight on the front for increased corner entry stability and confidence on the circuit.
Swingarm with optimised rigidity
Designed using Kawasaki's advanced dynamic rigidity analysis and a from-the-outside-in approach, swingarm with optimised rigidity contributes to nimbler handling
Large upper cowl cuts through the air more efficiently, and offers the rider greater wind protection, making it easier to shift position for corner entry when riding on the track
WSB Ready Cylinder Head
A number of changes offering enhanced performance and increased reliability care of feedback from Kawasaki's racing efforts in the Superbike World Championship facilitate converting the Ninja ZX-10RR into a race machine. Modified cylinder head provides the clearance to accommodate race-kit high-lift cams.
High Rigidity Crankcases
Reinforced, high-rigidity crankcase offers increase reliability and performance for a race-tuned engine. The connecting passageways between the cylinders are narrower and wall thickness increased in that area.
DLC Coated Tappets
Tappets based on feedback from Kawasaki's WSB racing efforts feature a DLC (Diamond-
Like Carbon) coating, which facilitates mid/long-distance engine break-in, and offers reduced mechanical loss and increased performance for a
race-tuned engine (i.e. tuned for high performance).
Light, Strong Pistons
Short pistons with high performance crowns are designed to handle the loads of the powerful engine. The light piston's contribute to excellent engine response. Further, the pistons are made from a special material with superb heat resistance that also offers excellent durability and toughness. Finally, a dry film lubricant coating on the piston skirts reduces friction at low rpm and helps with the piston bedding-in process.
Electronic Throttle Body
Kawasaki's fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions. The simple system enables more precise control of S-KTRC, and allows implementation of new electronic systems like KLCM and Kawasaki Engine Brake Control. Throttle valve diameter is 47 mm.
Crankshaft has a low moment of inertia. This is one of the most significant changes brought about by feedback from Kawasaki's WSB factory team benefits the bike's overall performance: acceleration, deceleration and cornering are all improved. Engine response is improved as the engine is able to spin up more quickly. Reducing the moment of inertia offers handling benefits as well.
Close Ratio Transmission/Back-torque Limiter
The Ninja ZX-10RR's gear ratios were idealised for circuit riding. Short ratios for second through to sixth gears (especially the closer first, second and third gears) offer strong low-mid range acceleration for quicker corner exits. The closer ratios also contribute to more stable downshifting. Easily adjustable back-torque limiting clutch facilitates smooth downshifts. This highly acclaimed feature is one of the main contributors to the rear's stable composure under hard braking.
RR Engine Covers
The Ninja ZX-10RR features black engine covers to enhance the "RR"s race-ready appearance.
Exhaust header pipes, formed from heat-resistant titanium alloy, have almost the same length and diameter as their race-use counterparts. (This feature makes it easier for riders to increase exhaust performance (for track applications) without having to replace the entire exhaust system.) Connector pipe joins headers 3 and 4, contributing to smooth engine response. Header collectors (4-2 sections) are hydroformed, resulting in a simple, lightweight construction.
Horizontal Back-link Rear Suspension
Revised set-up on the high-performance Showa BFRC lite rear shock to suit the new Pirelli tyres and single-seat specifications.
Multi Function Mode Selector
The choice of Power Mode (3 modes), S-KTRC (5 modes + OFF, KQS, KLCM, KEBC functions are controlled using a multi-function button located at the left handle.
Optimised Suspension Settings
Revised to match the Ninja ZX-10RR's single-seat specification and new wheels and tyres, new front and rear suspension settings ensure smooth weight transfer during deceleration and acceleration on the circuit. Pitching is kept at a manageable level, resulting in composed behaviour. Complementing the new Pirelli tyres, the suspension settings contribute to the bike's quicker lap times. (Because these changes were accomplished by simply revising initial pre-set positions - a testament to the high performance offered by the Showa Balance Free Front Fork and BFRC lite rear shock - the same changes can be made on standard Ninja ZX-10R models.)
Taking a from-the-tyres-inward approach, Kawasaki's dynamic modelling program (a comprehensive application the magic formula tyre model) was employed to determine the stresses that would be placed on the swingarm when the tyres are used to their full potential on the circuit. Then advanced dynamic rigidity analysis was used to precisely determine the necessary wall thickness and size to deliver the ideal lateral and torsional rigidity. The swingarm's optimised torsional rigidity contributes to the bike's nimbler handling.
A long swingarm contributes to the weight on the front. The benefits can be felt during braking, turn-in and when flicking the bike from one side to the other.
Enhanced Chassis Orientation Awareness
The strength of Kawasaki's cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing. Kawasaki's proprietary dynamic modelling program makes skilful use of the magic formula tyre model as it examines changes in multiple parameters, enabling it to take into account changing road and tyre conditions. The use of Bosch's compact IMU allows an additional layer of precision to be added to the already high-level S-KTRC, KLCM and KIBS (ABS models only).
High-performance Brembo Brake System
A pair of massive φ330 mm Brembo semi-floating discs with a thickness of t5.0 mm deliver superb braking force. The stainless steel rotors offer high rigidity and contribute to excellent brake feel. To further improve the Ninja ZX-10RR's corner entry performance on the circuit, a high-spec Brembo front brake system was implemented. The Brembo system - very similar to the system used on the Ninja H2R - includes the best components available for a mass-production model. Special tuning at the Brembo factory ensures that all play has been removed from the system, so that when the brakes are called for, they respond immediately.
High Quality Rear Brake
At the rear a Brembo 220 mm diameter disc is slowed by a single-piston caliper. The disc is round shape complements the round shape of the front Brembo discs. Steel-braided line is used for the rear brake as well, contributing to greater feel.
KLCM (Kawasaki Launch Control Mode)
Designed to assist racers by optimising acceleration from a stop, KLCM electronically controls engine output to prevent wheelspin and minimise wheelies when launching. Riders can choose from three modes, each offering a progressively greater level of intrusion. Each mode allows the rider to launch from a stop with the throttle held wide open.
KTRC (Sport-Kawasaki TRaction Control)
Hybrid predictive/feedback-type evolution of the highly sophisticated traction control system helps riders push harder by maximising acceleration. 5 modes enable expert riders to get even more serious enjoyment on the circuit. With the addition of the IMU, S-KTRC changes from a purely predictive system to one that also incorporates feedback. The new hybrid predictive/feedback system offers even more precise management to help an even greater range of riders experience riding at the limit. The 5 DOF input from the IMU (plus the 6th calculated by the ECU) complements the numerous parameters monitored by S-KTRC system.
Kawasaki Engine Brake Control
The Kawasaki Engine Brake Control system allows riders to select the amount of engine braking they prefer. When the system is activated (by selecting "L" (Light) in the "KEBC" settings), the engine braking effect is reduced, providing less interference when riding on the circuit. When activated, the "KEBC" indicator light on the instrument cluster will be illuminated.
KQS (Kawasaki Quick Shifter)
Updated KQS system allows both clutchless upshifts and downshifts, contributing to race-ready performance. (On the standard model, clutchless downshifts are only possible with the race kit ECU.) Designed for effective sport riding, KQS can also be used on the street at rpm above 2,500 rpm.
Ohlins Electronic Steering Damper
Settings are matched to Ninja ZX-10RR handling characteristics. öhlins' special twin-tube design ensures stable damping performance even under circuit-riding conditions, and enables superb kickback absorption. The damper's high precision construction and use of an integrated clamp help minimise friction as the damper piston slides back and forth. Initial motion is very smooth as a result. Steering damper body is finished with a highly scratch-resistant alumite1 coating.
Aluminium Twin-Spar Frame
The front wheel is close to the rider helping to place weight on the front. The race bred front-end feeling contributes to increased stability and confidence on corner entry and when flicking the bike from one side to the other.
Reversible offset collar (race kit parts) allows the steering stem position to be adjusted +/-4 mm forward/backward from the standard position. This adjustability allows riders to set up the bike to suit track or riding style.
Reversible offset collar (race kit part) allows the swingarm pivot position to be adjusted +/-2 mm up/down from the standard position. This adjustability allows riders to set up the bike to suit track or riding style.
High Performance Tyres
The Ninja ZX-10RR is fitted with Pirelli Diablo Supercorsa SP tyres. The high-performance tyres greatly contribute to quicker lap times.
Large upper cowl ensure the aerodynamic performance of the machine-rider package, offers a low cdA (coefficient of drag). The wind protection enables riders to change positions easily as they set up for corner entry when riding on the track.
Riding position enables both circuit and street riding, contributing to controllability and rider confidence. With the handlebars close to the rider, the riding position is compact, offering riders greater flexibility to choose their position while riding.
Purposeful, Race Styling
The Ninja ZX-10RR's purposeful styling is distinct, but easily recognisable. The upper cowl and large screen, and voluminous rear section give the compact, mass-forward package a silhouette closer in appearance to Kawasaki's factory superbike machine. High-quality fit and finish and superb attention to detail ensure the bike looks equally impressive up close.
Compact line-beam headlamp units match the upper cowl design and contribute to bike's imposing image. LED-type (3-bulb) position lamp located at the top of the Ram Air duct is highly visible and contributes to the aggressive styling package. Cowl-mounted mirrors feature integrated LED-type (2-bulb) turn signals. The turn signals are connected via couplers, facilitating mirror removal for trackday use.
High-quality sculpted rubber tank pad protector, provided standard, protects the finish of the paint on the fuel tank. Fuel tank offers an excellent ergonomic fit with the rider's forearm and inner thigh when cornering.
High Efficency Ram Air Intake System
Ram Air intake is positioned close to front of the bike (where air pressure is highest), contributing to airbox filling efficiency. Large 10 L airbox allows a greater volume of intake air to be supplied to the engine. Maxium Power with Ram Air is 154.4 kW (210PS) /13,000 rpm.
Windscreen is fully supported by the upper cowl. The wide screen offers excellent wind protection in the shoulder area, and with the additional support reduces vibration at higher speeds. Intakes at the side of the windscreen allow wind to pass through, helping to prevent negative pressure build-up in the cockpit to reduce helmet buffeting.
Special "RR" Touch
Specially "RR" wheels feature a 7-spoke multi-directional forged aluminium wheels jointly developed with Marchesini contribute to lighter handling especially when changing direction. They offer a balance of high rigidity and a significantly reduced moment of inertia (thanks to a design that centralises mass at the hubs). Their machined finish contributes to their high-quality appearance. (These Marchesini wheels can also be fit on standard Ninja ZX-10R models. Parts necessary for compatibility, such as front brake discs and speed sensor ring, will be available via a kit.)
Special "RR" Touch
Ignition key adorned with a "RR" logo adds another special touch.
Special "RR" Touch
Each unit is individually numbered and features a stamped serial number plate on the upper triple clamp."RR" logo stamped/engraved into the pulser cover helps distinguish the Ninja ZX-10RR from the standard model. Ignition key adorned with a "RR" logo adds another special touch.
Special "RR" Touch
With being race-ready a priority, the Ninja ZX-10RR is designated a single-seat model. Single-seat cover is fitted standard, contributing to the bike's racy image. The KRT Winter Test snowflake logo on the cover matches the one on the windscreen.
KRT Winter Test Logo
The KRT Winter Test snowflake logo is on the front windscreen with Kawasaki Racing Team Logo on the front fender and on the top of the fuel tank.
Lack of passenger footpeg stays and a lightweight silencer stay contribute to a weight savings of approximately 1 kg versus the standard model. Forming the silencer from titanium alloy helps reduce weight and contributes to mass centralisation.
KIBS, Kawasaki Intelligent anti-lock Brake System
KIBS, Kawasaki's supersport-grade high-precision brake management system, uses high-precision control to regulate brake pressure during sport riding. KIBS is a multi-sensing system, using the input from numerous sources. In addition to front and rear wheel speed sensors (standard for any ABS system), KIBS also monitors front caliper hydraulic pressure and various information from the engine ECU (throttle position, engine speed, clutch actuation and gear position).
Accessories available for the new Ninja ZX-10RR include: Knee pads, Sliders, Axle sliders and Rear stand lugs.
24 Month Warranty
A 24 Month Unlimited Kilometre Warranty is standard on the 2017 Ninja ZX-10RR (ABS KRT Winter Test Edition).
Liquid-cooled, 4-stroke In-Line Four
Bore and Stroke
76.0 x 55.0 mm
DOHC, 16 valves
Fuel injection: 47 mm x 4 (Mikuni) with dual injection
Forced lubrication, wet sump with oil cooler
Primary reduction ratio
Final reduction ratio
Wet multi-disc, manual
Twin spar, cast aluminium
Steering angle (left/right)
27° / 27°
43 mm inverted Balance Free Front Fork with external compression chamber, compression and rebound damping and spring preload adjustability, and top-out springs
Horizontal Back-link with BFRC lite gas-charged shock, piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring
