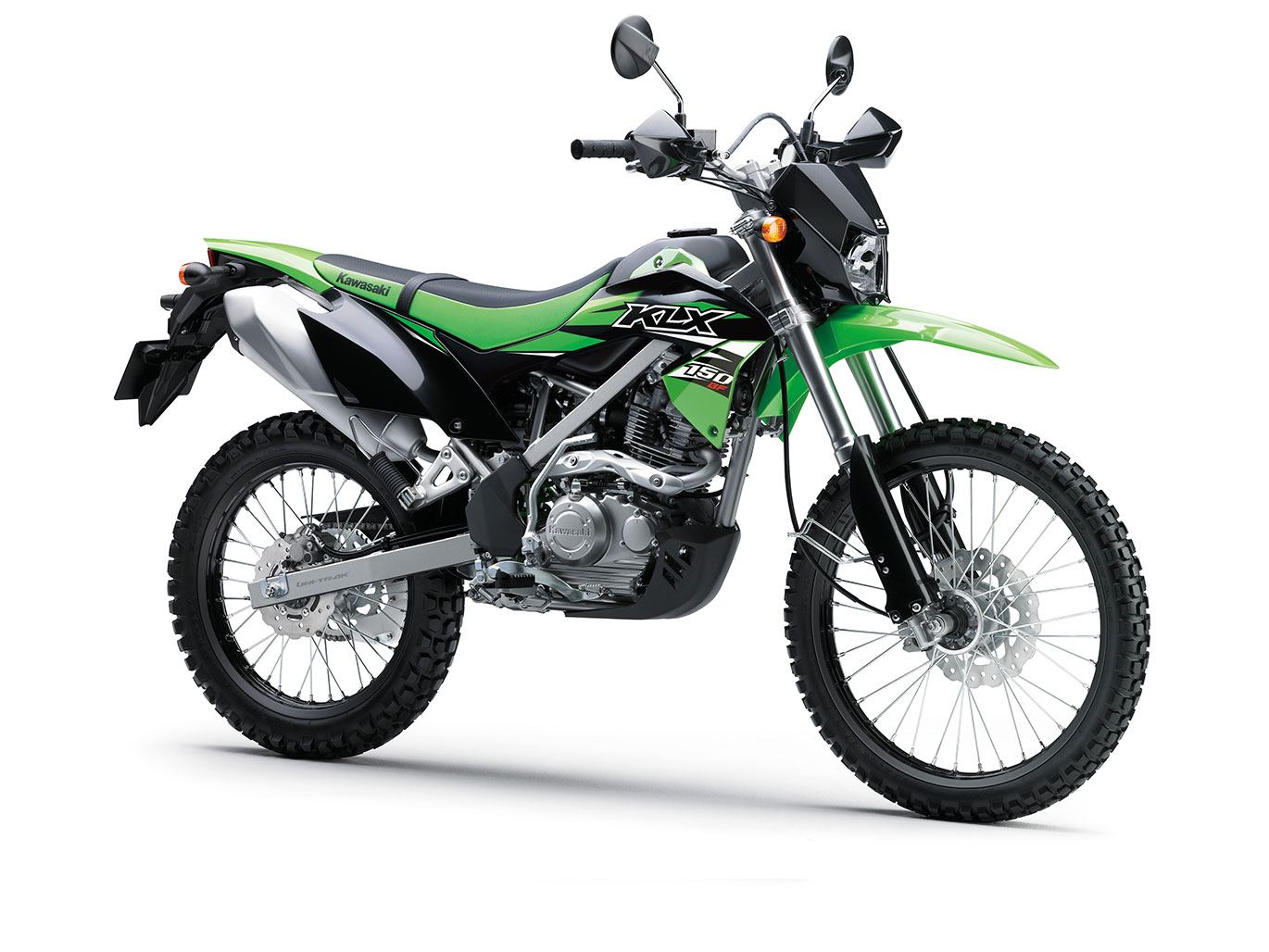

2017 KLX150BF SE
Dual Purpose with Serious Off Road Performance
A simple, yet reliable air-cooled single-cylinder engine and highly rigid, box-section perimeter frame are complemented by full size large-diameter wheels. The KLX150BF SE wheels (21” front and 18” rear) and inverted front fork to offer an even higher level of off-road performance.A simple yet reliable air-cooled single-cylinder engine with electric starter nestled in a sturdy, highly rigid steel perimeter frame offers easy-access, hassle-free fun. Complementing the strong engine and box-section perimeter frame, the 21” front and 18” rear wheels enable the KLX150BF SE to more easily tackle all obstacles encountered. The KLX150BF SE offers a slim, compact package with a 870 mm seat height, comfortable riding position and low-effort controls, resulting in a bike that is easy to ride for new riders and satisfying for experienced riders. Racy, KX-inspired styling further adds to pride in ownership. Fat bar handlebars, black alumite rims, hand guards, engine protector and frame guards round-out the additional features on the KLX150SE SE version. The KLX150BF SE is Learner Legal throughout Australia.
Full Size Wheels
Large 21" front and 18" rear tyres provide strong off road capability. Large wheels are better to overcoming obstacles encounted when taking the bike through off road trails or tackling the unpredictable roads of the urban environment.
inverted Front Fork
Gas Charged Rear Shock
Uni-Trak Rear Suspension
Flat Seat Design
The flat design of the tank and seat gives the rider greater freedom of movement when changing riding position, and facilitates sitting farther forward. Like our KX racers, the KLX150BF features a two-tone seat leather.
6.9 Litre Fuel Tank
With a capacity of 6.9 litres the fuel tank contributes to the KLX150BF long range, enabling riders to enjoy a full day of trail riding on a single tank.
Low Exhaust Emissions
Exhaust emissions clear Euro-III emissions regulations. A larger catalyser (located at the silencer entrance) ensures emissions regulations continue to be met with the shorter gearing. Silencer feaures an oval cross section, giving it a sharp aggressive design.
Aggressive taillight design complements the bikes' racy image. The long rear flap integrates the rear turn signals for a compact, tidy design. Handy tool box located on the inside of the left side cover features everything necessary for quick, on-the-spot maintenance jobs.
The 2017 KLX150BF SE is covered by a 24 Month Factory Unlimited Kilometer Warranty for added peace of mind.
Sharp headlight design features a 35/35 W halogen bulb. A new meter visor contributes to the aggressive appearance.
Large petal Discs Brakes
The 240 mm front petal disc is gripped by a twin-piston caliper and when combined with 190 mm rear petal disc and single piston caliper offers strong easy-to-control braking. The front and rear calipers use sintered brake pads for good wear characteristics.
Strong, Reliable Engine
The engine in the KLX150BF offers a simple, easy-to-use and highly reliable power plant. The 144 cm3 4-stroke air-cooled single-cylinder engine offers a lightweight power plant with both reliability and strong performance. Large Keihin NCV24 carburettor ensures smooth throttle response and excellent fuel economy.
Lightweight Aluminium Rims
Lightweight, black alumite aluminium rims enhance the appearance and handling.
Simple analogue instrumentation includes a speedometer, odometer, fuel guage, turn signals indicator, high beam warning light and neutral light.
5 Speed Transmission
|Model||KLX150BF SE (KLX150FHFA)|
|Engine Type||Liquid cooled, single cylinder|
|Bore and Stroke||58.0 x 54.4 mm|
|Valve system||SOHC, 2 valves|
|Fuel System||Keihin NCV24|
|Clutch||Wet multi-disc, manual|
|Frame||Perimeter, box-section, high-tensile steel|
|Wheel travel - front||175 mm|
|Wheel travel - rear||192 mm|
|Tyre Size-front||2.75-21 45P|
|Tyre Size-rear||4.10-18 59P|
|Suspension - front||35 mm inverted fork|
|Suspension - rear||Uni-Trak rear, single gas-shock with 5-way preload adjustability|
|Brakes - front||Single 240 mm petal disc with twin piston caliper|
|Brakes - rear||Single 190 mm petal disc, with a single-piston calliper|
|L x W x H||2,070 x 825 x 1,155 mm|
|Ground clearance||295 mm|
|Seat height||870 mm|
|Fuel capacity||6.9 liters|
|Curb mass||118 kg (includes full fuel tank, all fluids at optimum levels)|
|Colour||Lime Green with Ebony|
|Warranty||24 Months Unlimited Kilometres|
